Formlabs Fuse 1 230V
Brand:
Formlabs
| SKU: | FS1-PRINTER-230V |
- Premium service and support
- Eenvoudige mogelijkheid voor leasen.
- Gunstige verzendvoorwaarden en retourbeleid
- Fysieke showrooms op diverse locaties in Nederland
- 4-7 days
Information

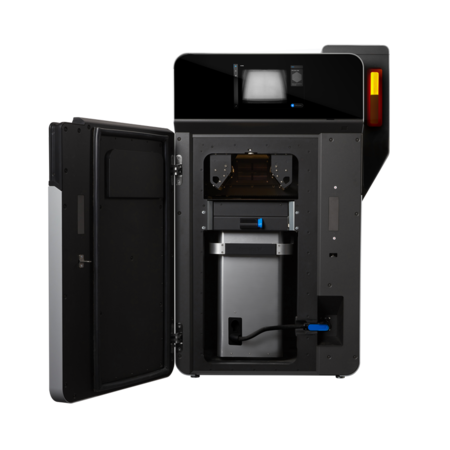

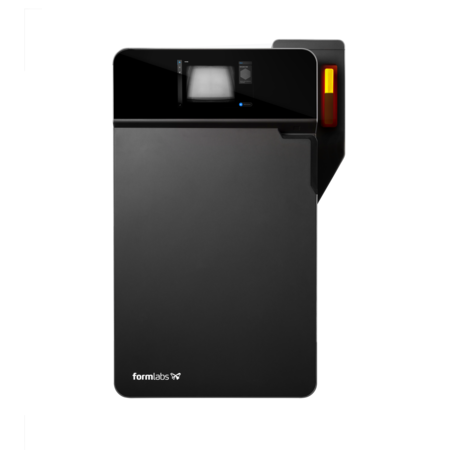

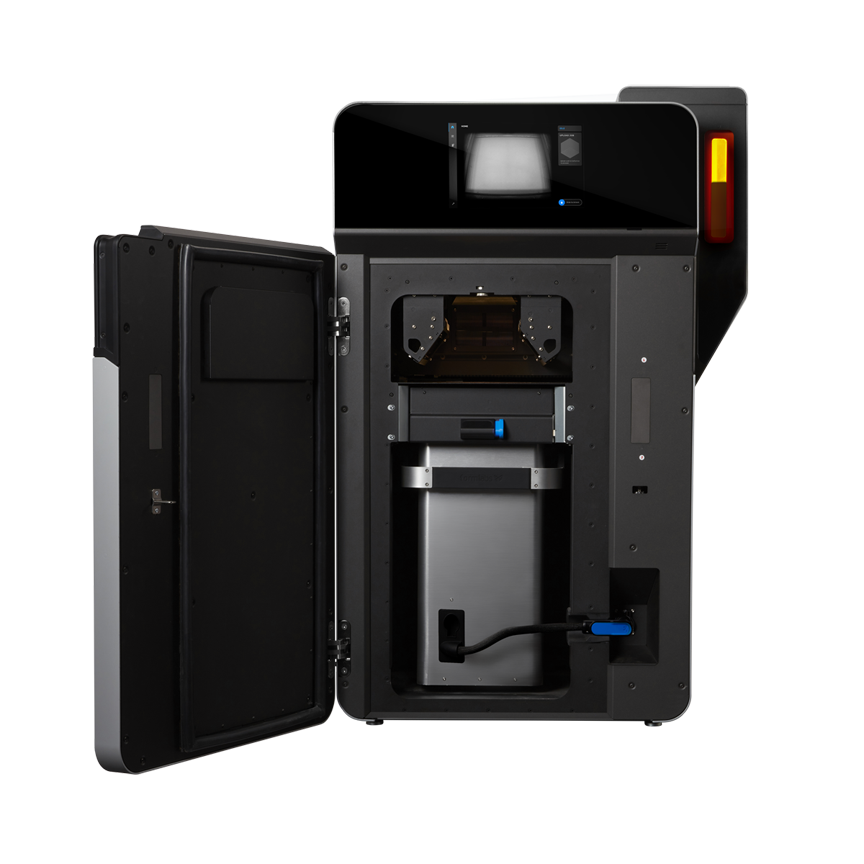

Formlabs Fuse 1

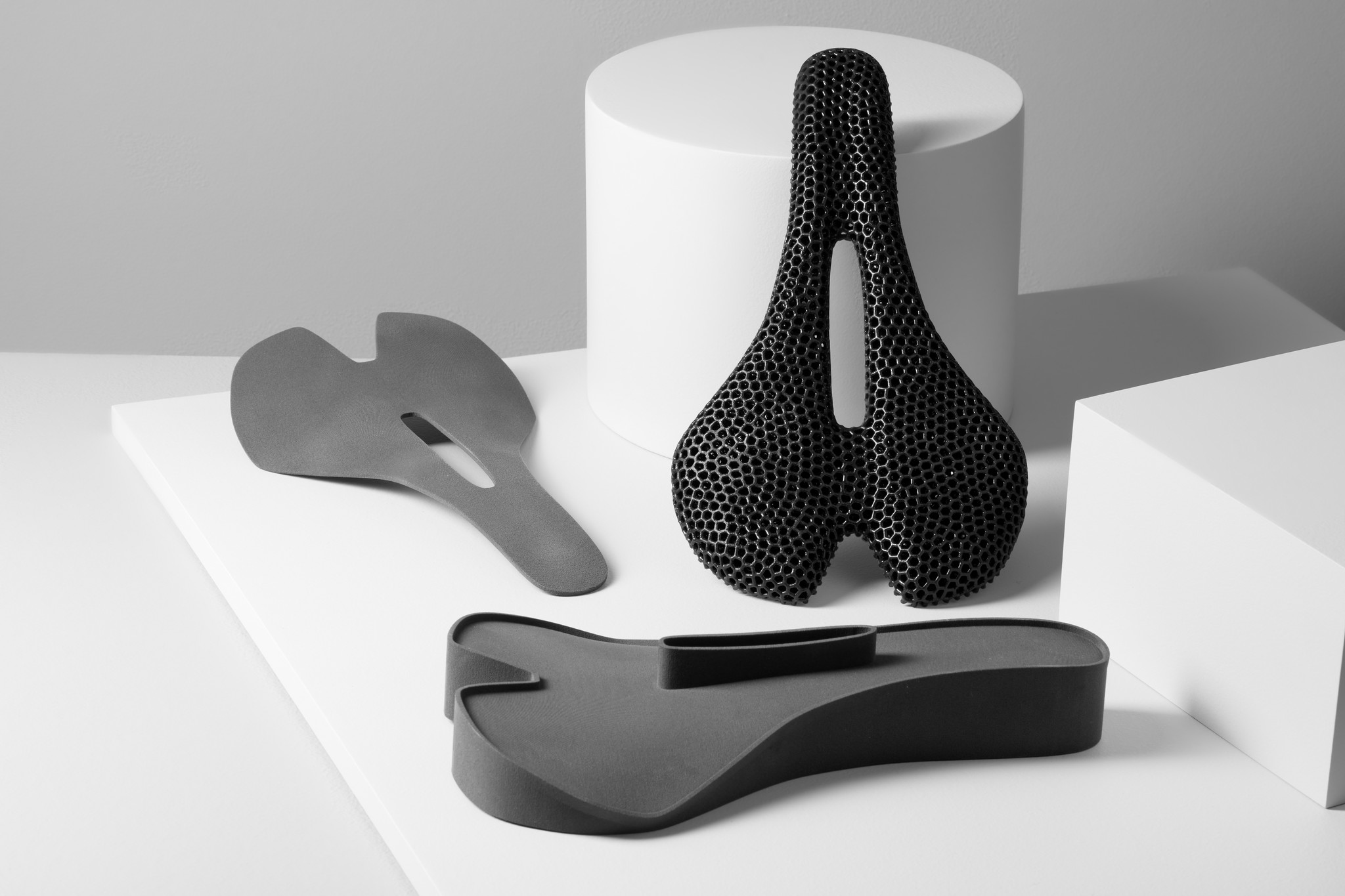

Formlabs Fuse 1 3D printer offers multiple benefits to businesses. For example, dozens to hundreds of 3D printed nylon parts can be easily printed on location every day. With the Formlabs Fuse 1 in-house, this no longer needs to be outsourced. Printing with the Formlabs SLS printer is always reliable and consistent, allowing you to print non-stop. The Formlabs Fuse 1 has a safe and secure powder recycling, very handy. With the Fuse 1 SLS printer, you can print at industrial quality, at a low price. Can the Fuse 1 3D printer also accelerate for your company? Please contact one of our advisors or request a quote. We are happy to tell you all about the possibilities of this SLS 3D printer.
Specifications
| Print Technology: | Selective Laser Sintering (SLS) |
| Build Volume: | 165 x 165 x 300mm |
| Layers Thickness: | 110 microns / 0.004in |
| Laser Type: | Ytterbium Fiber 10W |
| Laser Spot Size (FWHM): | 200 microns / 0.0079in |
| Laser Specifications: | Ytterbium Fiber IEC 60825-1: 2014 certified, 1070nm wavelength, Maximum 10 Watts 4.01 mrad beam divergence (nominal, full angle) |

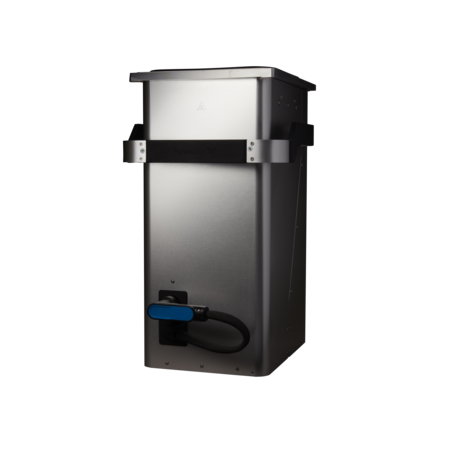

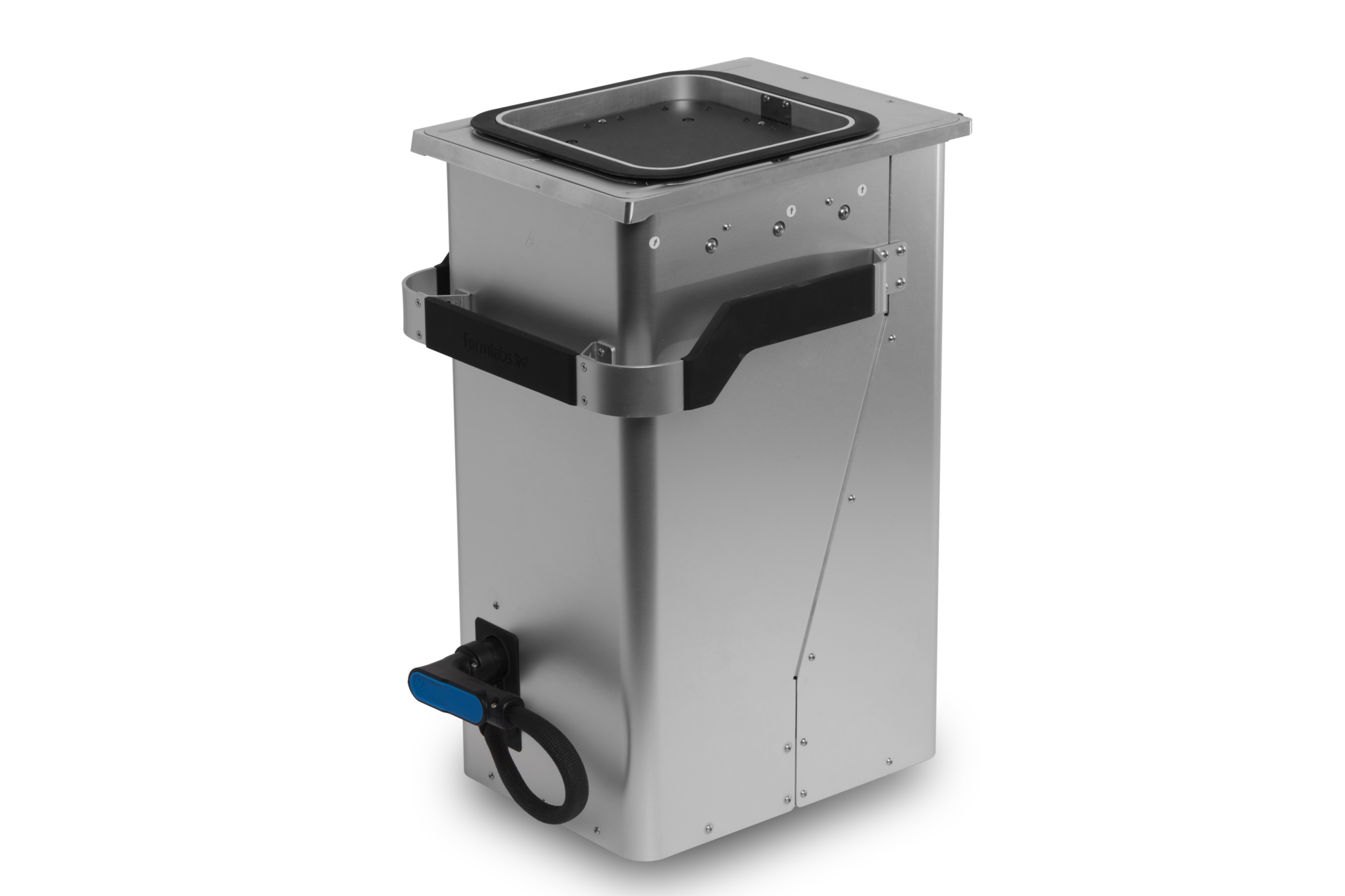

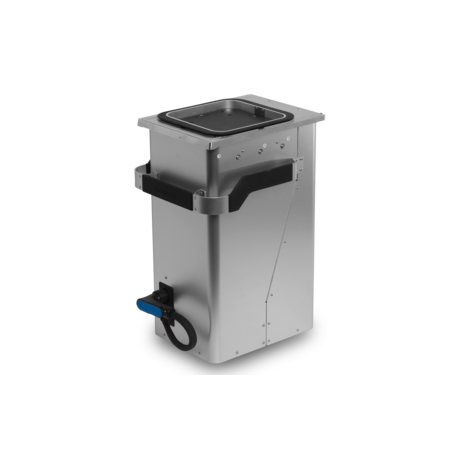

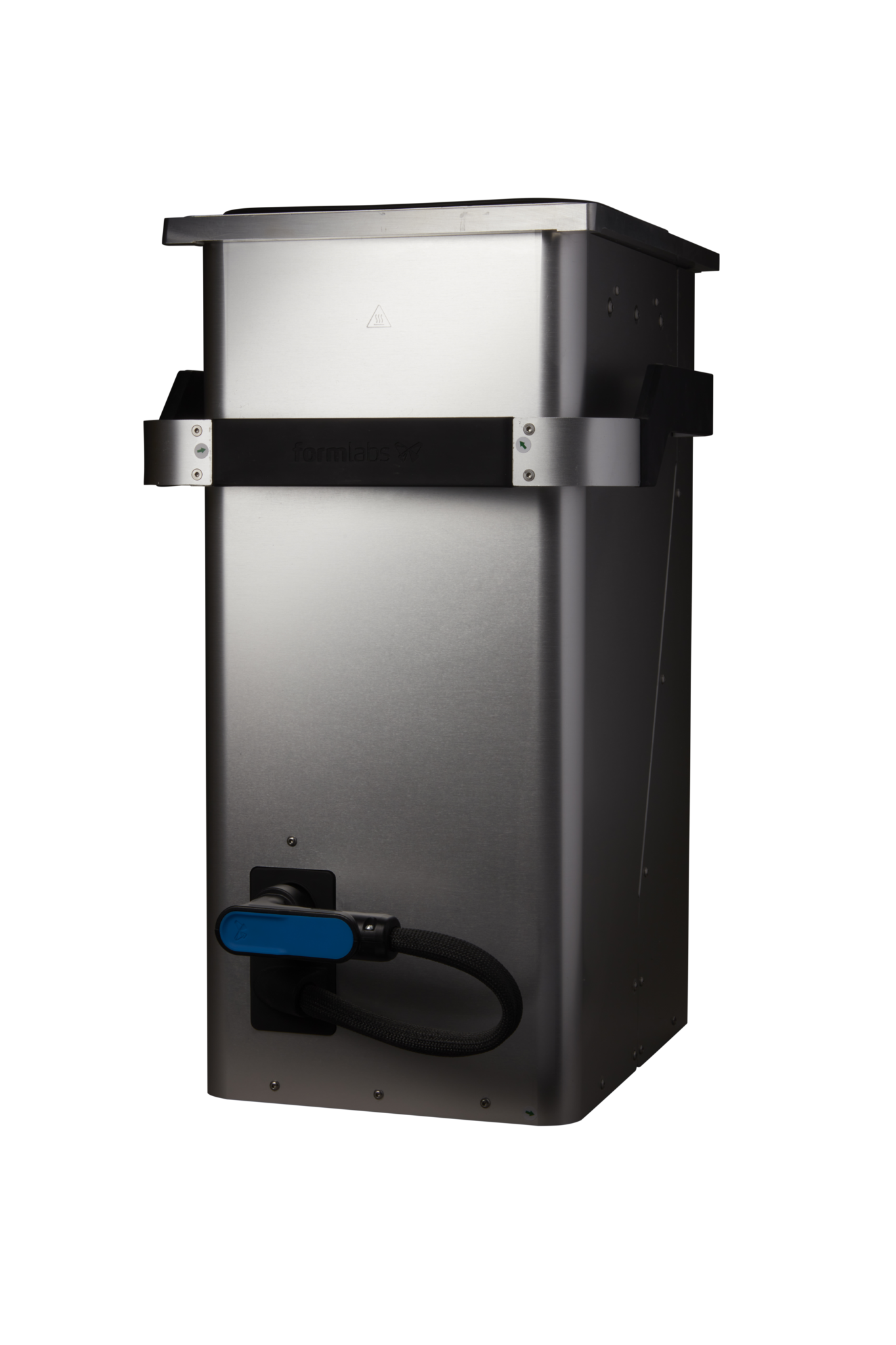

| Bouw Chamber Dimensions: | Modular, compatible with Fuse 1 generation printers and Fuse Sift |
| Hopper Capacity: | 17.8L |
| Productgrootte: | 68.5 x 64.5 x 106.5cm |
| Supports: | No supports |
| Minimum Access Dimensions (W × D × H): | 125.5 × 149.5 × 187cm |
| Printer Dimensions (W × D × H): | 64.5 × 68.5 × 107 cm (165.5 cm with stand) |
| Recommended Operating Footprint (W × D × H): | 145.5 × 149.5 × 167.5cm to allow access to the front and sides of the printer. |
| Stand Dimensions (W × D × H): | 59.6 x 60 x 58.4cm |
| Weight: | 114kg (without build chamber or powder) |
| Startup Time: | < 60 minutes |
| Operating Environment: | 18 – 28ºC |
| Internal Temperature: | Up to 200ºC |
| Temperature Control: | Quartz tube heating elements, Positive temperature coefficient (PTC) cartridges |
| Air Handling: | Pressure-controlled two-stage filtration (Replaceable HEPA and carbon mediums) |
| Power Requirements: | EU: 230 VAC, 7.5 A (dedicated circuit) / US: 120 VAC, 15 A (dedicated circuit) |
| Galvanometers: | Formlabs Custom |
| Radiation Information: | The Fuse 1 is a Class 1 Laser product. Accessible radiation is within Class 1 limits |
| Connectivity: | Wi-Fi (2.4GHz + 5GHz) Ethernet (1000 Mbit) USB 2.0 |
| Printer Control: | 10.1” interactive touchscreen, 1280x800 resolution |
| Alerts: | Touchscreen alerts and tracking SMS/email via Dashboard Live video feed with computer vision, Proactive maintenance alerts |
| Slicer Software: | PreForm Desktop Software |
| System Requirements: | Windows 7 (64-bit) and up, Mac OS X 10.12 and up, OpenGL 2.1, 4GB RAM (8GB recommended) |
| File Types: | .STL or .OBJ, FORM file output |
