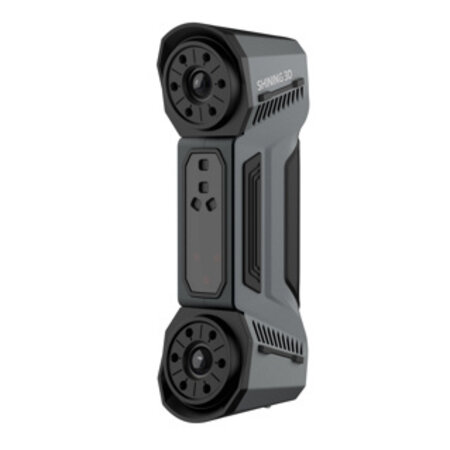

Shining 3D Shining3D FreeScan Combo

FreeScan Combo adopts metrology-grade accuracy, fine scanning and high precision from the FreeScan series, while providing an even lighter and more compact design. It features 26 + 7 + 1 blue laser lines and an infrared scanning mode. Considering speed, versatility and accuracy, this high-performance 3D metrology solution can meet the needs of different scanning scenarios such as metrology-grade inspection, reverse engineering and further applications.

Main features

Scanning speed

The FreeScan Combo can achieve a scanning speed of 1,860,000 points per second using the laser scan mode and a speed of 2,250,000 points per second utilizing infrared mode. FreeScan Combo delivers high accuracy according to VDI-VDE 2634-2 of 0,02 mm while capturing a vast amount of data per second.

Size

This metrology-grade scanner has an ergonomic and compact design. With a size of 193 mm × 63 mm × 53 mm and a weight of 620 g, the FreeScan Combo comes as an easy-to-use and versatile scanner.



Versatility

The different scanning modes include:

• 26 laser lines suitable for easy and large size laser scanning
• 7 parallel laser lines for scanning fine details
• 1 single laser line can obtain 3D data from narrow areas such as holes
•  Infrared mode can scan without markers
